Could a Citroën ë-Jumpy Hydrogen be Feasible in Australia?

July 20th, 2022

Comments Feed

Currently (July 2022) in Australia, hydrogen refuelling stations are found in Melbourne, Sydney, and Brisbane.  Green hydrogen (H2) is a cleaner fuel for running a motor to power a vehicle.  H2 is produced using electricity that has been made from renewable resources (sun, wind, hydro) and is one effective way to aid the reduction of unwanted gas emissions.  Hydrogen is also the simplest and most abundant chemical element in nature that is almost always bound to another element.  It can be used as a clean and inexhaustible energy.  You can even create a hybrid vehicle where hydrogen and batteries can combine to propel a hydrogen-ev forwards.

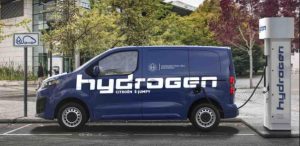

Citroen have created a great light commercial van called the Citroën ë-Jumpy Hydrogen.  While it is currently only sold in a few markets in Europe (where there are many more hydrogen refuelling stations), the light commercial van combines the best technologies of a hydrogen fuel cell and a battery for motoring.  Perhaps we might be able to get an ë-Jumpy Hydrogen van in Australia to run the Melbourne to Brisbane Hydrogen Highway?

Citroën’s entire light commercial vehicle (LCV) range is already fully electrified overseas, and Citroen say that the ë-Jumpy Hydrogen offers the widest electrified range to meet the heavy demands of business professionals.  Citroen Australia is yet to bring any of these ev vans to Australia.

The Citroen ë-Jumpy Hydrogen van has a hydrogen fuel cell and rechargeable batteries, the first Citroën powered by this form of energy.  While accommodating this new hydrogen/electric technology, it still manages to retain the practical volume and load carrying capacity.  The hydrogen and electric components are integrated into the van’s ingenious design, ensuring that the componentry sizes have no impact on load capacity.

Citroën ë-Jumpy Hydrogen LCV has a range of over 400 km.  The three 700 bar carbon-fibre hydrogen tanks are stored on the horizontal below the load floor, which sit next to the battery under the front seats.  These hydrogen tanks can be filled in just three minutes!

So how does it all work?  The Citroën ë-Jumpy Hydrogen LCV is a fully electric vehicle and benefits from a 45 kW fuel cell that produces electricity by consuming hydrogen.  A 10.5 kWh battery takes over automatically once the hydrogen tank is empty.  The battery itself is automatically charged using electricity that is generated by consuming hydrogen or by using a cable at any typical electric-vehicle charging station.

The Citroen ë-Jumpy Hydrogen has identical specifications to the Peugeot e-Expert Hydrogen and Opel Vivaro-e Hydrogen vans in the UK.  Citroen say that the ë-Jumpy Hydrogen LCV is for businesses that need more than the standard EV van’s 300 km of driving range, or for those who have no time to wait around recharging before getting to the next job.  The Citroën ë-Jumpy Hydrogen is expected to offer over 400 km (249 miles) of driving range.

Citroen say that Battery Electric Vehicles (BEVs or EVs) are perfect for all applications with range requirements of 100-300 km a day if there is access to overnight charging.  But with the improvements in battery technology leaping forward, time is currently on the side of BEVs/EVs.

Citroën ë-Jumpy Hydrogen specs include:

a total range of over 400 km

3-minute refuelling of the hydrogen tanks

three 700-bar hydrogen tanks (70 MPa), with 4.4 kg of hydrogen under the floor when at full capacity

range with 10.5 kWh battery only being used: 50 km

front-wheel drive

100 kW of power and 260 Nm of torque developed from the permanent magnet electric motor

an 11 kW three-phase on-board charger

2 van lengths available (Medium 4.95 m long, and XL 5.30 m), with the same loading volume characteristics as any equivalent diesel or purely electric versions

cargo space of 5.3 m3 to 6.1 m3
payload up to 1100 kg
towing up to 1000 kg
